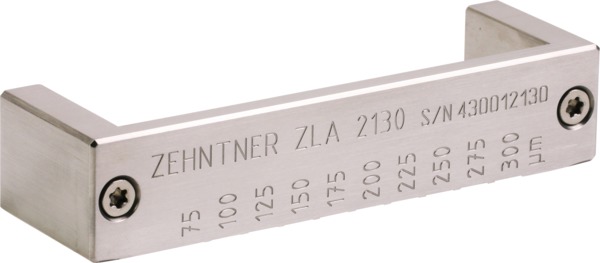

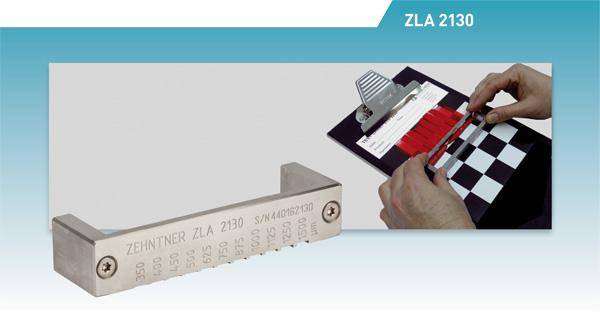

Aplicador de Hundimiento ZLA 2130
– Determinación de las propiedades de pandeo de los materiales de revestimiento y productos similares sobre sustratos planos.
– Facil de manejar.
– Resultados confiables.
– Fácil de limpiar.
| Versiones | Modelo | Altura de brechas | Estándares |
|---|---|---|---|
| Aplicador de Hundimiento ZLA 2130 | 2130.A.75 | 75/100/125/150/175/ 200/225/250/275/300 µm (3/4/5/6/7/8/9/10/11/12 mil) |
ASTM D4400, ISO 16862 |
 |
2130.A.350 | 350/400/450/500/ 625/750/875/1‘000/1‘125/ 1‘250/1‘500 µm (14/16/18/20/25/30/ |
|
 |
2130.D | 75/100/125/150/175/ 200/225/250/275/300/ 350/400/450/500/550/ 600/650/700/800/900/ 1’000/1’100/1’200/ 1‘300 µm (3/4/5/6/7/8/9/10/11/12/ |
DIN 55677 (extraido 2006) |
 |
2130.2S | por requerimiento desde 5 – 4‘000 µm (0.20 – 157.5 mil) |
Incluye:
1 aplicador de caída
1 certificado de fabricante
1 caja de almacenamiento
| Opción | Modelo | Descripción |
|---|---|---|
 |
ZPV 2030 | Platos de succión de precisión |
 |
ZTC 2200 | Registros de pruebas |
| Version | Gap heights | Gap width | Gap distance | Standards |
|---|---|---|---|---|
| 2130.A.75 | 75/100/125/150/175/ 200/225/250/275/ 300 µm (3/4/5/6/7/ |
6.35 mm (0.25“) | 1.6 mm (0.06“) | ASTM D4400, ISO 16862 |
| 2130.A.350 | 350/400/450/500/ 625/750/875/1‘000/ 1‘125/1‘250/1‘500 µm (14/16/18/20/25/30/ |
|||

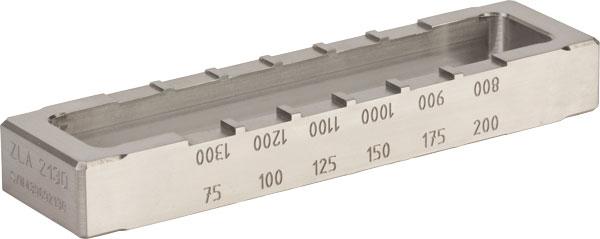

| 2130.D | 75/100/125/150/175/ 200/225/250/275/300/ 350/400/450/500/550/ 600/650/700/800/900/ 1’000/1’100/1’200/ 1‘300 µm (3/4/5/6/7/8/ |
10 mm (0.39“) | 2 mm (0.08“) | DIN 55677 (withdrawn 2006) |
| 2130.2S | on request from 5 – 4‘000 µm (0.2 – 157.5 mil) |
on request | ||
| Material | acero inoxidable |
| Ancho de aplicación | 2130.A.75: 77.9 mm (3.07″) 2130.A.350: 85.85 mm (3.38″) 2130.D: 70 mm (2.76″) 2130.2S: dependiendo de la versión |
| Dimensiones (LxAnxAl) | 2130.A.75: 114 x 34 x 24 mm (4.49 x 1.34 x 0.94″) 2130.A.350: 122 x 34 x 24 mm (4.80 x 1.34 x 0.94″) 2130.D: 115 x 29 x 14 mm (4.53 x 1.14 x 0.55″) 2130.2S: dependiendo de la versión |
| Garantía | 2 años |
| Version | Estándares |
|---|---|
| ZLA 2130.A.75 | ASTM D4400, ISO 16862 |
| ZLA 2130.A.350 | ASTM D4400, ISO 16862 |
| ZLA 2130.D | DIN 55677 (extraido 2006) |
| ZLA 2130.2S | dependiendo de la especificaciones seleccionadas |
