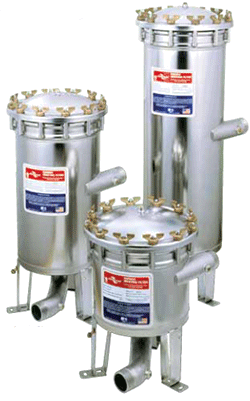

Harmsco Housing HP HUR 40 HP Filter Housing
Part Number: HP HUR 40 HP HF
| Especificaciones | |
| Marca | Harmsco Housing HP |
| Tipo | for Harmsco Free Cartridge |
| Presión de trabajo bar | 10.3 |
| Presión psi | 150 |
| Temperatura máxima de °C | 60 |
| Temperatura máxima de °F | 140 |
| Área de medios ft2 | 40 |
| Flujo gpm | 50 |
| Flujo l/min | up to 189 |
| Flujo m3/h | up to 12 |
| Conexión de drenaje – pulgadas | 1 NPT |
| Material | 304 Stainless Steel |
| O-Ring / juntas / | EPDM |
| Dimensiones / Pesos | |
| Entrada inch | 2 |
| Salida pulgadas | 2 |
| Longitud del cartucho inch | 9-5/8 |
| diámetro exterior pulgada | Ø7-3/4 |
| Altura pulgadas | 19-1/2 |
| Peso kg | 18.2 |
| Peso lb | 40 |
| Cantidad por caja | 1 pieces |
| Aplicación | Drinking water, Process water, Industrial water, RO Pre-Filtration, Coolig Tower, Surface water |
Lower Operation Cost
Harmsco® HP Hurricane® filters provide unsurpassed performance.
Our unique design separates dense solids prior to cartridge filtration for extended filter life, increased dirt holding capacity and reduced maintenance costs.
Combination cyclone separator andcartridge filter in a single compact design
Patented Up-flow design with tangential entry – prevents air entrapment
Rotational flow “flutters” media pleats – improving loading performance
Electropolished 304 stainless steel housing
Fail-Safe lid closure, rated for 150 psi
CPVC standpipe (standard) – stainless steel optional
Three sizes for greater media surface area
Extensive choice of cartridge micron ratings
and media, including carbon block
NSF 61 listed
