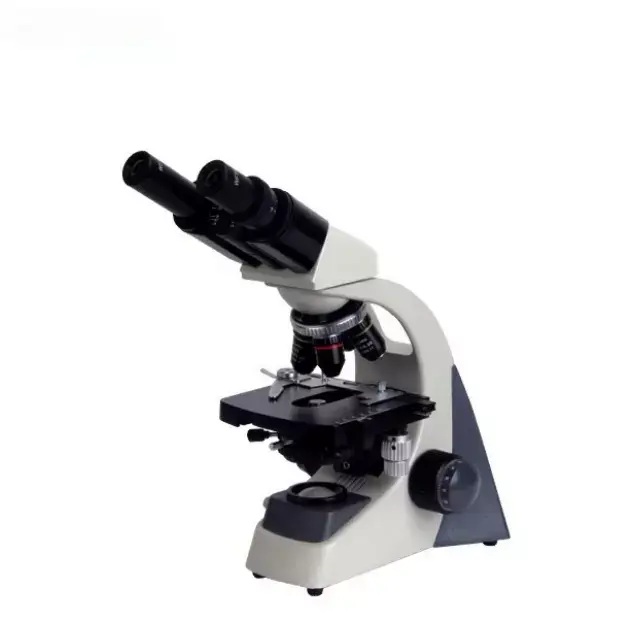

Microscopio biologico binocular

Name: Microscopio biologico binocular
SKU: b2-01-29-207

Esta combinación no existe.

SKU: 4 orificios

SKU: b2-01-29-207

Microscopio biológico (serie 207)

Fuente tecnica sin tabla cuantificable para esta plantilla.

Revise la tabla tecnica para validar volumen, temperatura, voltaje y dimensiones por variante.

Este contenido se enfoca en validar cumplimiento tecnico del unico segun su proceso y condiciones de instalacion.

Eyepiece	Wide Field Plan-scope Eyepiece: WF10X
Objective	45mm DIN Achromatic Objective: 4X,10X,40X(S), 100(S,Oil)
Head	Articulated Free Binocular Head, Interpupillary Distance:55-75mm; 30°Inclined, 360°Rotatable
Stage	Double Layers Mechanical Stage: 125X125mm, Moving Range X-Y: 60X40mm
Condenser	ABBE Condenser: N.A.1.25; Ф2-Ф30mm Iris Diaphragm and Ф32 Filter
Focusing Adjustment	Coaxial Coarse and Fine Focusing Adjustable Mechanism: 14mm
Illumination	Built-in Adjustable Brightness 1W LED lamp
Optional	1.WF16X; 2.Semi Plan Objective, Plan Objective; 3.Rechargeable
Net Weight	4kg
Model
Wide Field Plan-scope Eyepiece	WF10X
45mm DIN Achromatic Objective	4X,10X,40X(S), 100(S,Oil)
Articulated Free Binocular Head, Interpupillary Distance	55-75mm; 30°Inclined, 360°Rotatable
Double Layers Mechanical Stage	125X125mm, Moving Range X-Y: 60X40mm
ABBE Condenser	N.A.1.25; Ф2-Ф30mm Iris Diaphragm and Ф32 Filter
Coaxial Coarse and Fine Focusing Adjustable Mechanism	14mm

Microscopio biológico (serie 207). Para una guia de seleccion detallada, revise esta misma pestaña junto con la tabla tecnica.
