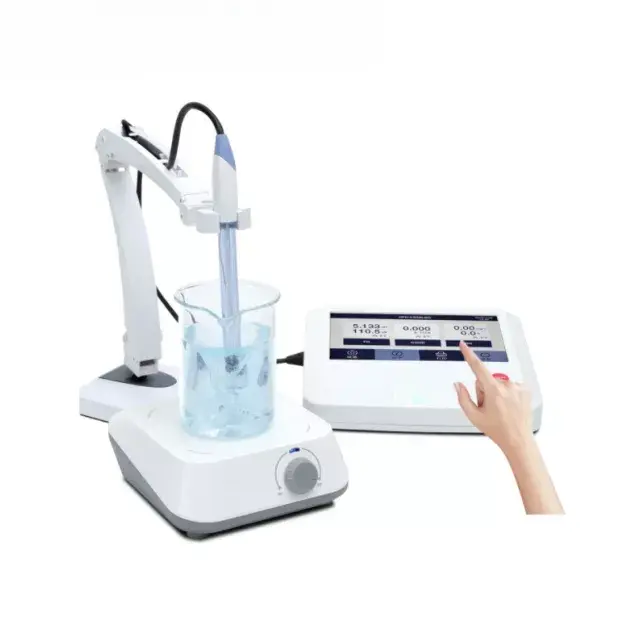

Medidor electroquimico de mesa con pantalla tactil

SKU
- DC12V
- 140 mm
- 100 mm
- 350 mm · 100 wells
- Opt4
- Opt5
- Opt6

Esta combinación no existe.

Descargar catalogo (PDF)

SKU: b2-01-29-061

1.Display pH/Cond/DOsimultaneously.
2.High-res 7" touch screen, easy operation.
3. User-friendly operating navigation by graphics and texts.
4.Automatic calibration, automatic temperature compensation, timing data storage and parame-ter setup, etc.
5.Equipped with a flexible probe holder, magnetic stirrer and standard calibration solution.
6.Protection class: IP54.

Parametro	Valor
Touch screen Series	Single parameter
EC100T	DO100T
PC100T	PD100T
Parameter	pH/mV.℃
mV(ORP).°C	√
√	√
√	√
√	√
pH	Measurement range
(-2.000 - 20.000)pH	√
√	√
Resolution	0.01/0.001
precision	±0.002pH ± one digit
Calibration points	1-5 pts auto
ATC range	(0.0-100.0)℃/(32.0-212.0)°F
ORP	Measurement range
(-1999.9-+1999.9)mV	√
√	√
Resolution	0.1/1
precision	±0.03%F.S ± one digit
Conductivity	Measurement range
√	√
Calibration points	One point auto
Resolution	0.001
ATC range	(0.0 - 50.0)°C/(32.0 - 122.0)℉
precision	±0.5%FS ± one digit
DO	Measurement range
√	√
precision	±0.30 mg/L
√	√
DO saturation	(0.0 - 200.0)%
√	√
Automatico barometric pressure compensation	(0 - 200.0) kPa
√	√
Automatico temperature compensation	(0.0 - 50.0)°C/(32.0 - 122.0)°F
√	√
Manual salinity compensation	0 - 45ppt
√	√
Temperature	Measurement range
(-10.0- 135.0)°C/(14.0 - 275.0)°F	√
√	√
√	√
√	√
precision	±0.2°℃
√	√
√	√
√	√
Others	Data export
PC/Printer/USB Stik	√
√	√
√	√
√	√
Alimentacion	DC12V
√	√
√	√
√	√
Data storage	No, parameter, value, temp, date, and time.
500groups	500groups
500groups	1000groups
1000groups	1000groups
Test kit	Meter
√	√
√	√
√	√
Glass refillable combination pH probe 201G	√
√	√
Stainless-steel temperature probe TEMP-01	√
√	√
√	√
√	√
pH buffer solution: pH4.00/7.00/10.01, 50mL, one for each	√
√	√
√	√
√	√
√	√
PC cable: 1pc	√
√	√
√	√
√	√
Flexible probe holder F01: 1pc	√
√	√
√	√
√	√
Magnetic stirrer: 1pc	√
√	√
√	√
√	√
Potencia adaptor	√
√	√
√	√
√	√

Configuraciones observadas

La tabla tecnica muestra 7 configuraciones del equipo.
Las diferencias visibles entre configuraciones incluyen: mv (orp).c, cond/tds/sal/res.c, do.c, ph, resolution.
La seleccion depende de las especificaciones tecnicas visibles en la tabla del producto.
